Glossary Term
X-band Radar

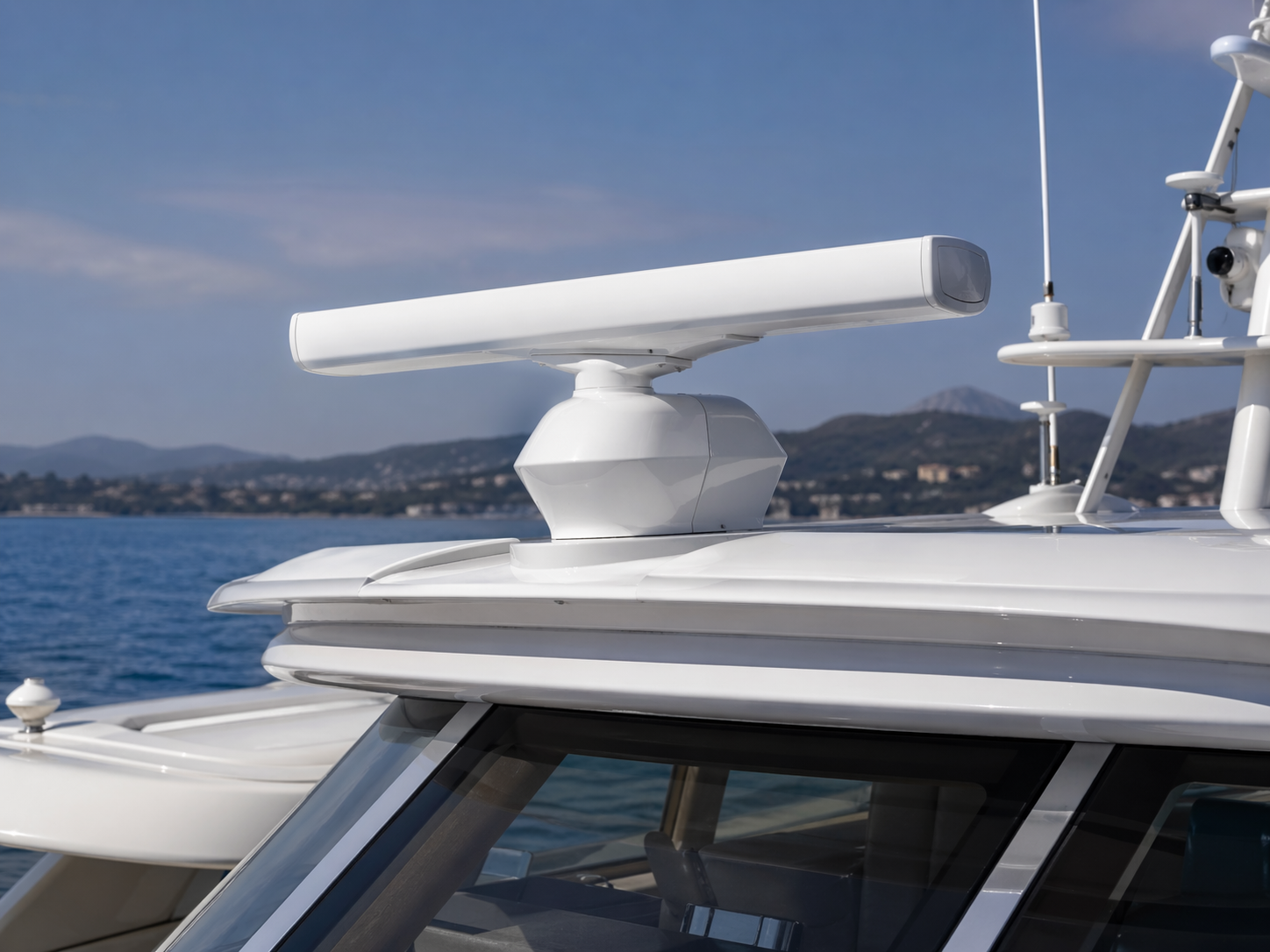

X-band radar is a marine radar operating in the X frequency band, usually around 9.4 GHz. It is common on yachts because it provides sharper target definition and better short-range detail than S-band radar. That makes it particularly useful for coastal navigation, harbour approaches, buoy identification, and tracking smaller targets near the vessel.
Its shorter wavelength helps the radar show fine echoes and distinguish nearby contacts more clearly on short and medium ranges. That detail is valuable when the yacht is navigating in traffic, confined waters, or areas with many marks and shoreline features. In heavy rain or strong sea clutter, however, the radar picture can degrade more quickly than an S-band picture, so the operator has to manage tuning and interpretation carefully.
X-band radar is most effective when it is read as part of the wider bridge picture instead of as a single source of truth. Range scale selection, pulse settings, antenna placement, and clutter adjustment all influence how useful the display will be. On larger yachts with two radar bands available, X-band often becomes the preferred close-range tool, while S-band supports longer-range awareness in more difficult conditions.
